管道外壁自動噴砂機
◆適合範圍 Applicable scope
管類鋼件,如:不銹鋼鋼管、彈簧鋼、支撐桿、螺旋軸、超大圓柱體體、圓柱體類、圓柱體體型零部件;按照雙槍(可按規定多槍)及颶風式旋風除塵器器和光電公司感測器功效,提生了的生產效應及大的增多了修補率。 (此型號需指定)
The kind of pipe workpieces, such as: steel pipe, round steel, bars, screw, large cylindrical, cylinder, round the plant; Adopt double gun (according to demand more gun) and new filter and light electricity function, improve the production efficiency and reduce the maintenance rate. (the model need to customize)
◆具體方法技術指標 Main technical parameters
|
 刷卡機款式 Model  |

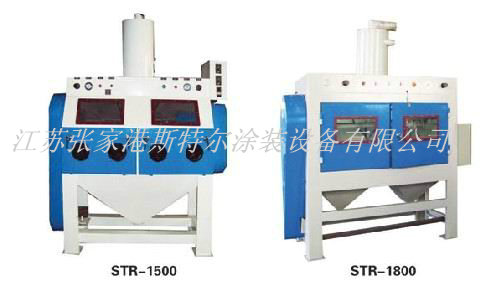

 STR-1500管道外壁自動噴砂機  |
 STR-1800輥傳動雙槍自動噴砂機  |
|
 工作的艙尺寸圖 Working class size(mm)  |
 1000×900×900  |
 1800×900×1000  |
|
 機床尺寸圖 Complete machine size(mm)  |
 1200×900×2900  |
 1900×900×2900  |
|
 縮減氣氛源 Compressed air source  |
 2-8bar(kg/cm2)  |
 2-8bar(kg/cm2)  |
|
 電源開關 Power  |
 220v  50Hz   |
 220v  50Hz  |
|
 變頻柜電機馬達變頻調速器 Governor  |
 250W×2   |
 250W×2  |
|
 隔離器直流無刷電機 Separator motor  |
 380v  50Hz  4kw  |
 220v  50Hz  1.1kw  |
|
 分離法器排風量 Air separator  |
 35m3/min  |
 35m3/min  |
|
 絲機體重 Machine weight  |
 900kg  |
 900kg  |
